This project was a highly detailed Design and Construct Subcontract , highlighting our capability to manage complex, multi-faceted external glazing installations.

• High-Performance & Thermal Glazing: Installation included Clear Double Glazed Units (DGU) with Low E Glass for enhanced energy performance, as referenced by the project's Section J requirements.

  • Specific glazing included Colourback DGU Glass and Clear Laminated Glass in screen panels.

  • All glazing was specified to meet AS1288 standards.







• Specialty Window and Door Systems:

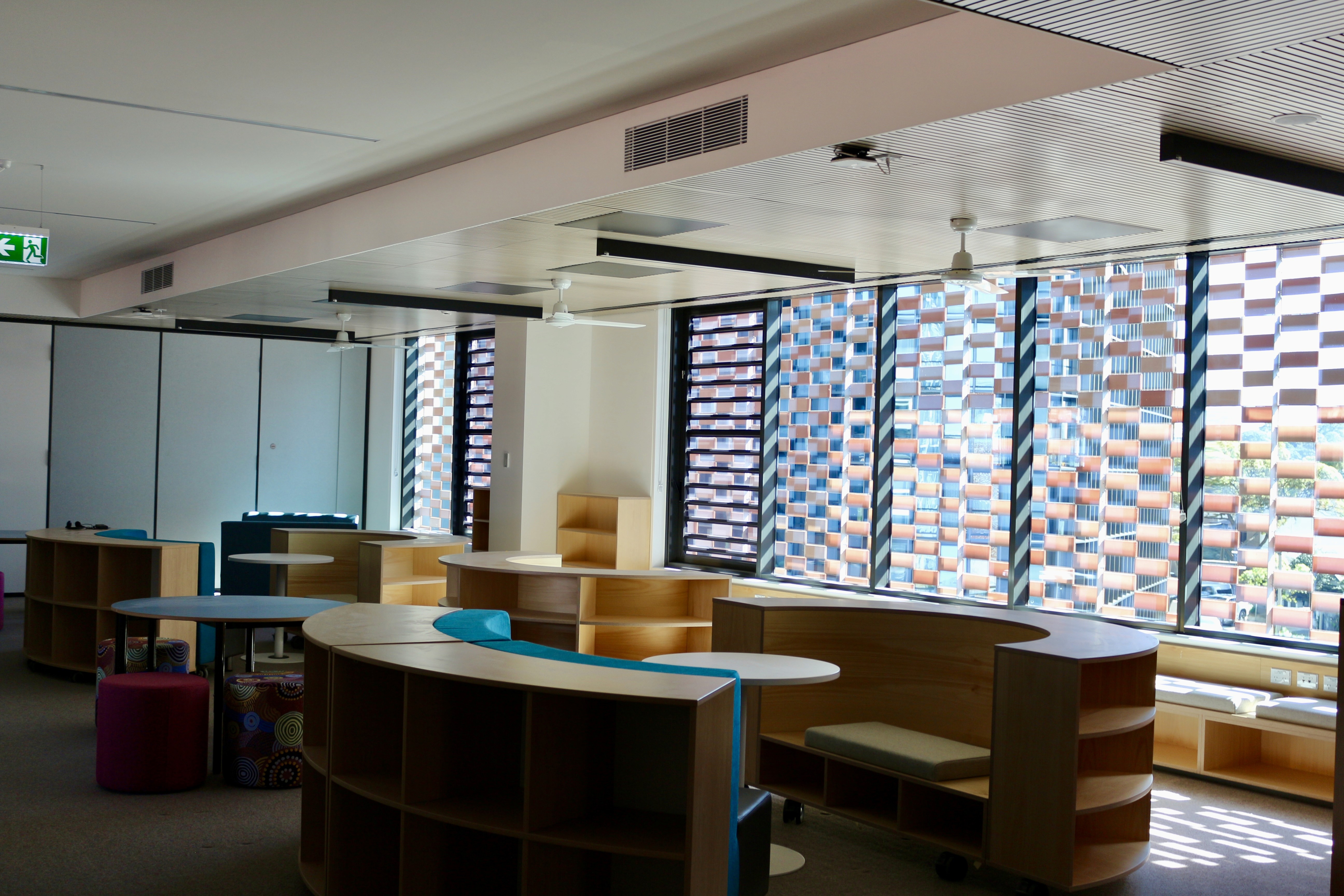

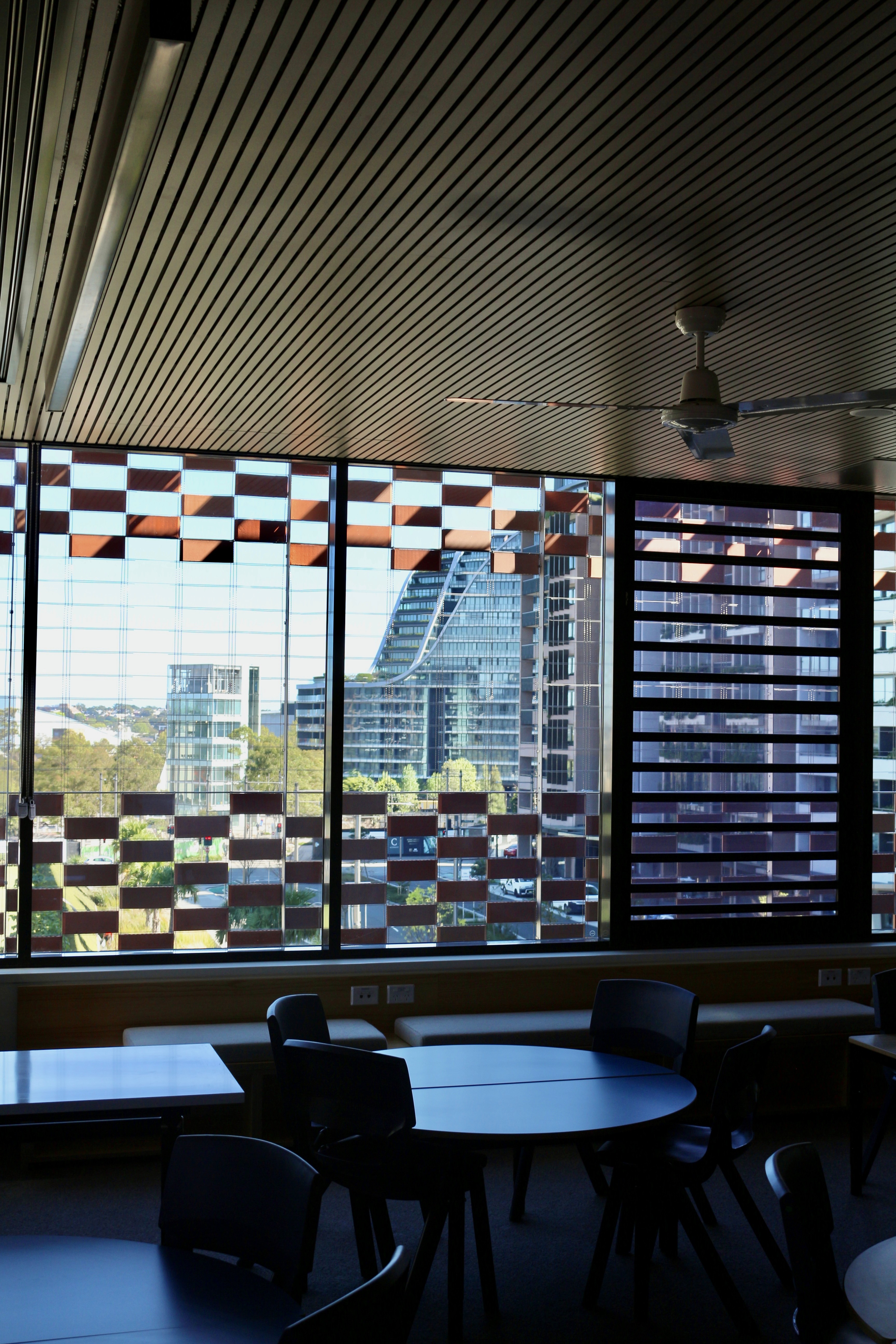

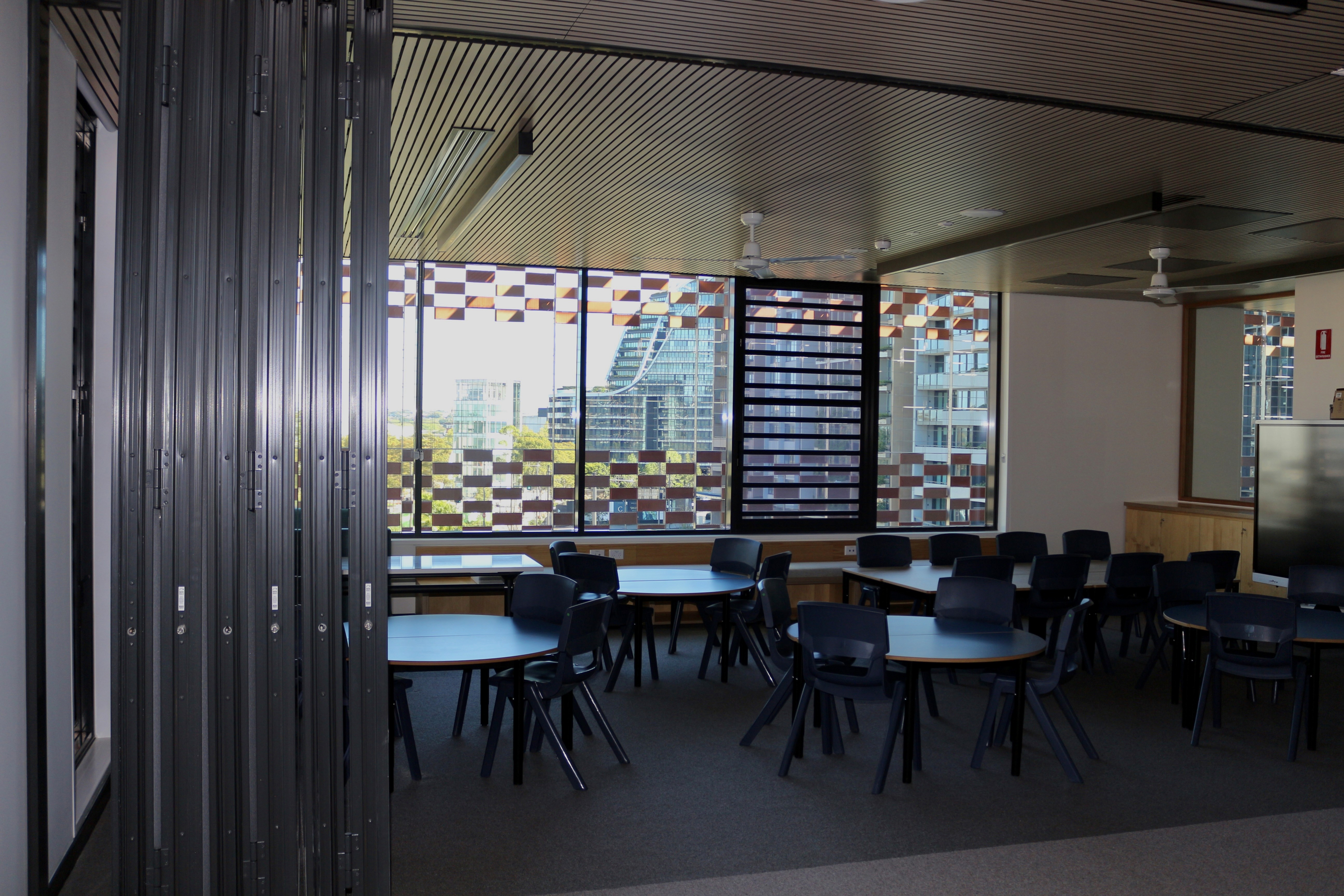

  • Integrated Manually Operated Glass Louvres (SafetyLine Jalousie system) with Toughened Blades for controlled natural ventilation.

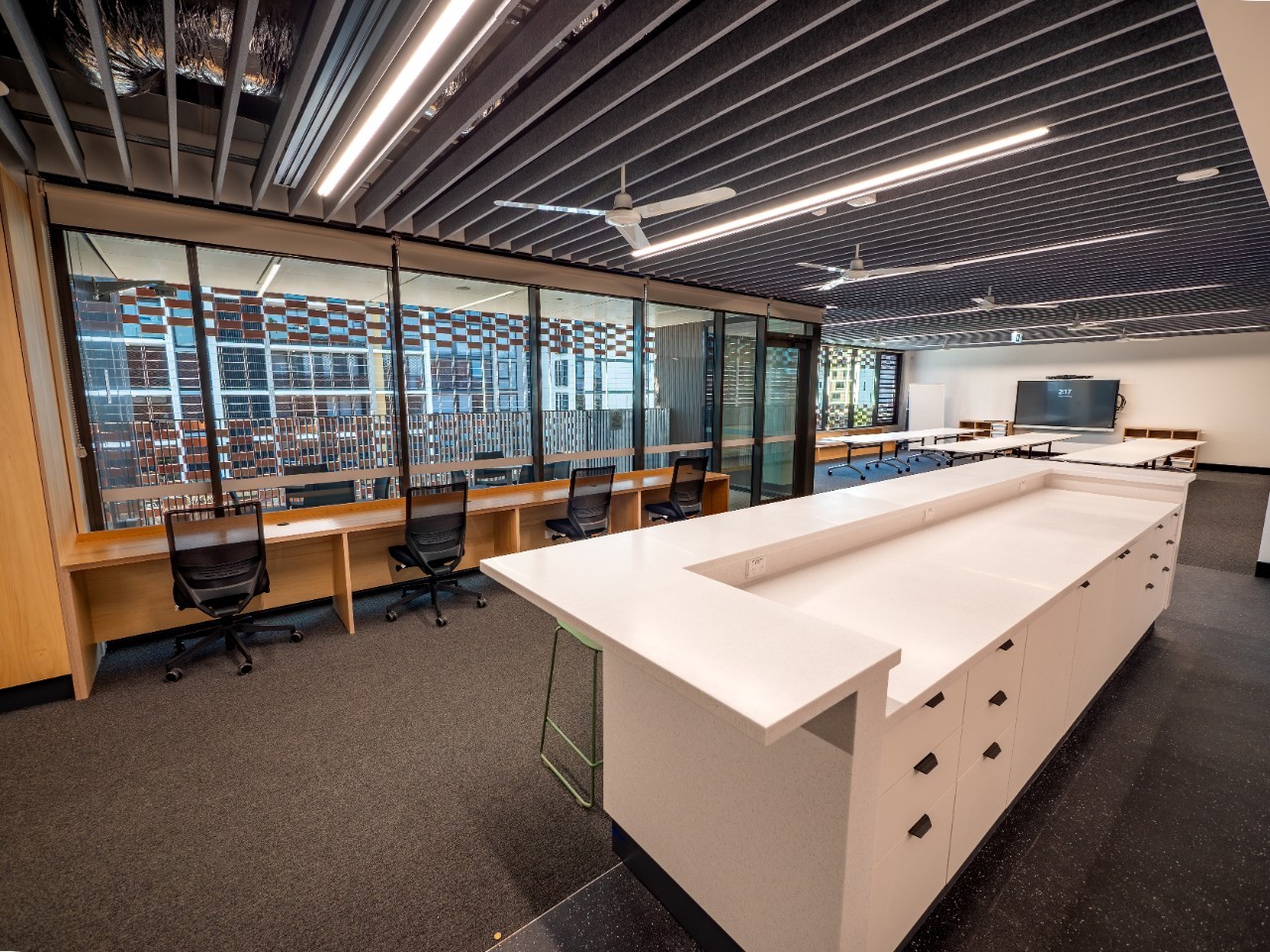

  • Installed Aneeta Sashless Double Hung windows and various Aluminium framed Fixed Panels across four levels.

  • The project utilized an extensive range of window and door schedules (e.g., EWS-301, EWS-302, WIN-101).




• Access & Entry Solutions:

  • Integrated Aluminium Glazed Automatic Sliding Doors using major commercial brands (DormaKaba, ADIS, Briter, or equivalent).

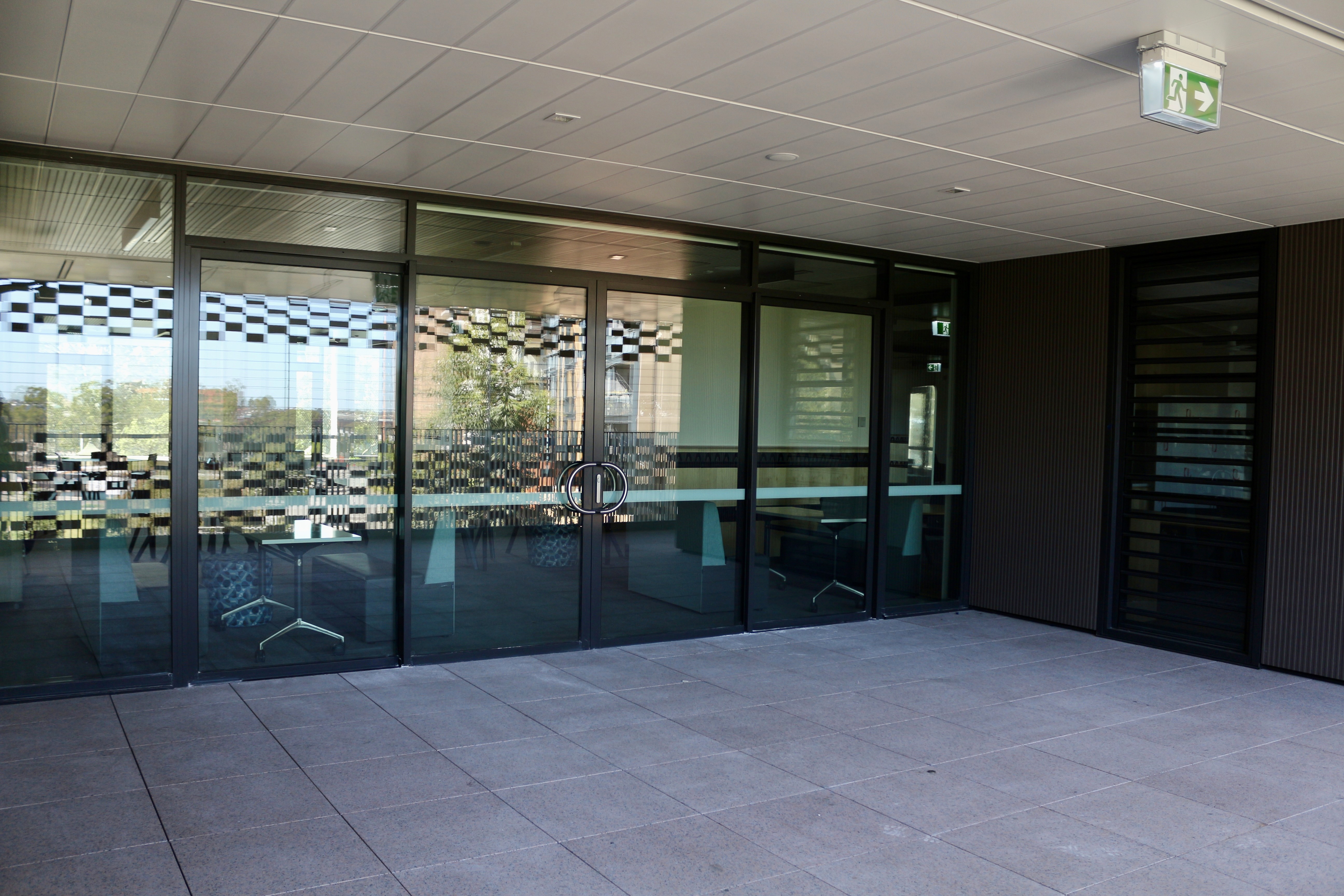

  • Installed standard external Single Swing doors, Double Swing doors, and Manually Operated Sliding Doors.

  • Provided Door Closers to all external swing doors.




• Framing and Finish:

  • Used reputable aluminium systems from manufacturers like ALSPEC, Capral, or equivalent.

  • All external visible aluminium elements received a consistent Powder Coated Standard Range Dark Grey RAL 7021 finish.




Specialized Project Value (Extra Work & Compliance)

Our scope extended beyond the base package, managing technical compliance and complex installation details:

• Acoustic Requirements: Offered to install specific internal sliding doors with DGU designed to achieve an acoustic rating of max. Rw 32.




• Accessibility & Safety: Offered the provision and installation of specialized DDA compliant thresholds and Panic Bars to meet enhanced safety and emergency exit regulations.




• Design and Construct: Demonstrated capability to manage a full Design and Construct subcontract, providing workshop drawings and certifications to ensure compliance with the NCC and all specifications.
