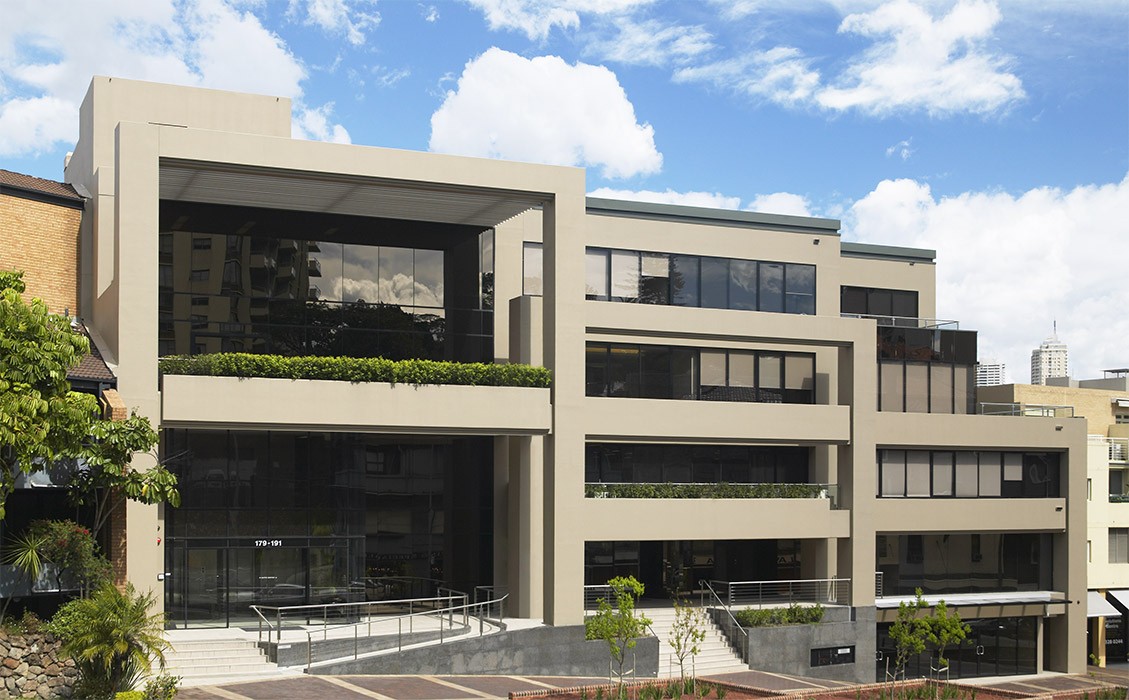

ANKA Office Building
A large-scale upgrade of a commercial building's eastern facade and lift lobby, featuring the installation of a new curtain wall and automated access doors.
a
work
ANKA Office Building
A large-scale upgrade of a commercial building's eastern facade and lift lobby, featuring the installation of a new curtain wall and automated access doors.
a
work
ANKA Office Building
A large-scale upgrade of a commercial building's eastern facade and lift lobby, featuring the installation of a new curtain wall and automated access doors.
a
work
ANKA Office Building
A large-scale upgrade of a commercial building's eastern facade and lift lobby, featuring the installation of a new curtain wall and automated access doors.

client
SMLXL Projects
service
Fixed Glass Panel, Curtain Wall, Automated Sliding Doors
location
179-191 New South Head Rd, Edgeclif
category
Commercial
completed
2020
Project Overview
Key Project Features
The ANKA upgrade project was a complex and high-profile refurbishment focused on modernising the building's facade and improving the main lobby area. The scope of work included:
Curtain Wall Installation: The centrepiece of the project was the installation of a new curtain wall system, glazed with 13.52mm clear toughened laminated glass. This system was designed to meet AS1288 and provide a striking, modern aesthetic to the building's exterior.
Specialised Glazing: We used 10mm bronze laminated glass for some external windows, providing a unique and sophisticated look while offering additional solar control. We also installed 10.38mm clear laminated glass for other internal and external areas.
Automated Access: A key functional feature was the installation of automatic glazed sliding doors, supplied by a trusted brand such as ADIS, Briter or Auto Ingress. These doors greatly improved accessibility and modernised the main entrance.
Durable Finish: All aluminium frames, doors, and automatic door systems were finished with a high-quality Dulux DURATEC Powder coated Monument Matt, ensuring a long-lasting and robust finish that complements the building's new design.
The Result
The completed ANKA facade and lobby upgrade has successfully transformed the building's entrance into a modern and functional space. The combination of a sleek new curtain wall, bronze-tinted glass, and automated doors has not only improved the building's aesthetics but also enhanced its functionality and appeal for tenants and visitors.
